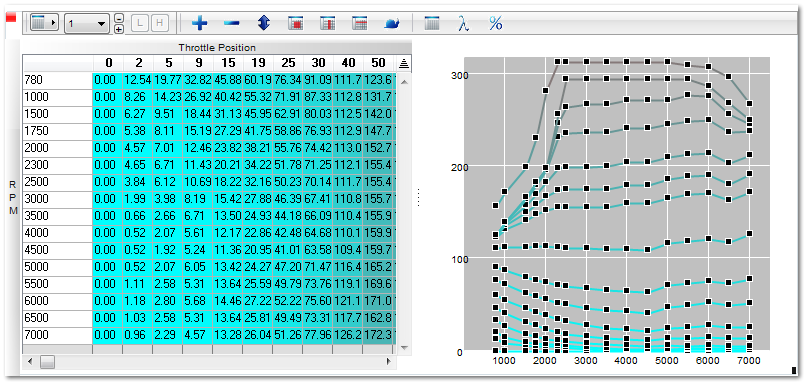

Tuning Maps

This is the map selection drop down, which gives a list of available tuning maps for the platform.

In this case our selected map are the torque targets for Comfort Mode. We allow each individual gear to be commanded differently, so the map sub-selection pulldown is populated with values 1-6, for gears 1-6. You can also use the - and + to move between these additional maps. On general maps the sub-selection may offer maps by CAM gear and other options.

For switching between low and high cam. Low cam is when VTEC is disengaged, high cam is when VTEC is engaged.

The toolbar gives you easy access to add, subtract, adjust, and interpolate the current selection. It also allows you to switch to the lambda overlay mode.

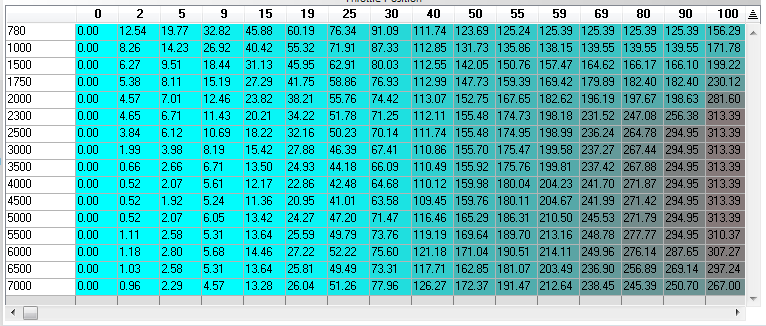

The tuning map is where you change the current map values, make selections, watch the map trace during live datalogging or playback sessions.
