Tuning

Tuning

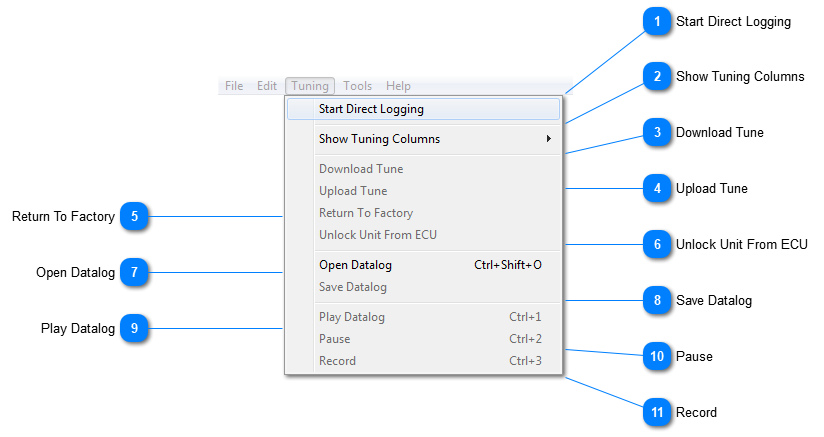

Tuning Menu: The Tuning menu has access to many of the tuning items you'll use on a regular basis.
1

Start Direct Logging

1. Start Direct Logging
Enables Direct Serial Logging from supported widebands.
2

Show Tuning Columns

2. Show Tuning Columns
Used to depict how many columns are visible when editing in a tuning table.
3

Download Tune

3. Download Tune
If your platform supports downloading the tune this is how you would easily access that option.
4

Upload Tune

4. Upload Tune
Upload the currently open tune to the ECU.
5

Return To Factory

5. Return To Factory
Return to factory. Either for returning to stock for a short time or unlocking a unit from your ECU.
6

Unlock Unit From ECU

6. Unlock Unit From ECU
You must return to factory first and after the flash this option will be available.
7

Open Datalog

7. Open Datalog
Used to locate and open a saved datalog file.
8

Save Datalog

8. Save Datalog
Used to save the currently open or recorded datalog.
9

Play Datalog

9. Play Datalog
Used to play or stop playing the currently open datalog.
10

Pause

10. Pause
Used to pause a currently playing datalog.
11

Record

11. Record
Used to record a new datalog if the device is currently logging from the ECU.
