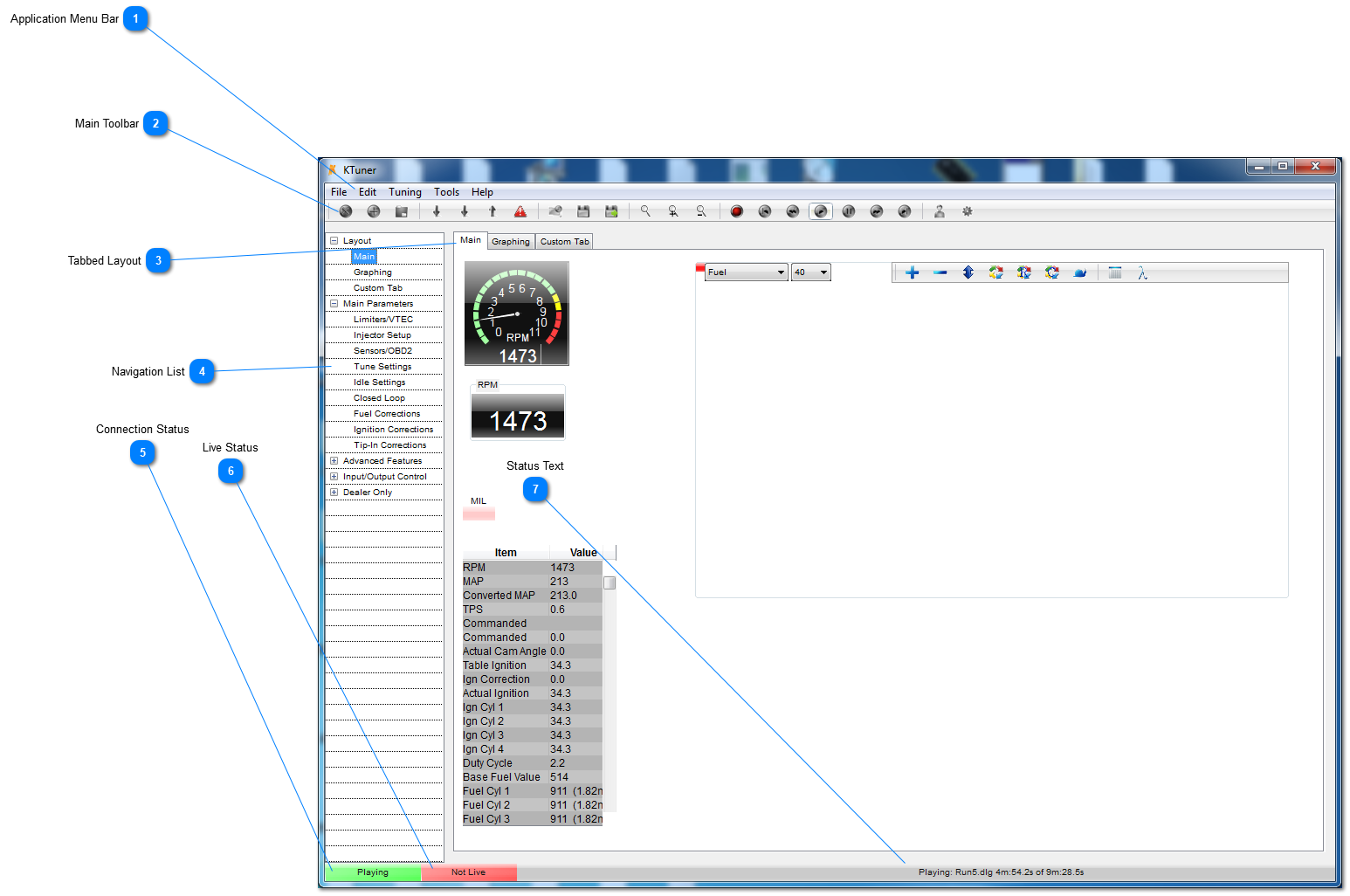

Window Items

Window Items
1

Application Menu Bar

1. Application Menu Bar
Contains commands to manipulate the current view and open tuning calibration.
2

Main Toolbar

2. Main Toolbar
The Main Toolbar has easy access to a lot of the regular functions
3

Tabbed Layout

3. Tabbed Layout
The tab area allows you to easily switch between views and items without going back to the navigation list.
4

Navigation List

4. Navigation List
The Navigation List allows you to browse through layout and parameter areas to gain quick access to settings or layout setups.
5

Connection Status

5. Connection Status
The connection status will let you know when you're disconnected, connected, downloading, reflashing, recording, and playing a datalog.
6

Live Status

6. Live Status
This status area will let you know when you have live settings, live maps, or no live tuning ability.
7

Status Text

7. Status Text
The status text area will let you know your playback status, datalogging frames per second, and other useful info.
