Torque Targets Per Mode

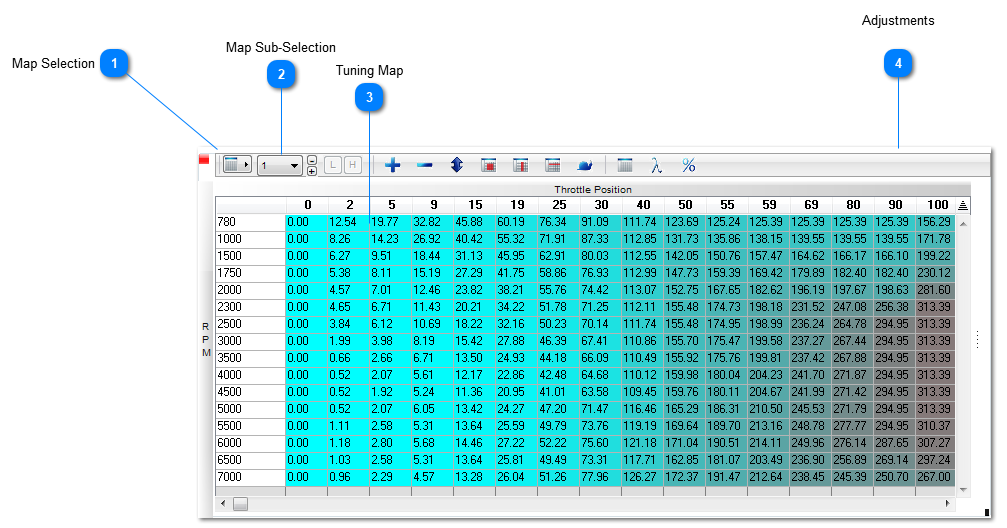

This is the map selection drop down, which gives a list of available tuning maps for the platform.

In this case our selected map is the torque targets for Comfort Mode. We allow each individual gear to be commanded differently, so the map sub-selection pulldown is populated with values 1-6, for gears 1-6. You can also use the - and + to move between these additional maps.

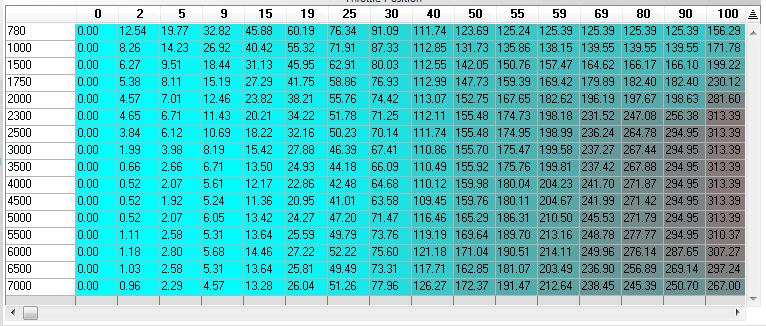

The tuning map area allows you to select, alter, and change the torque target for each gear and mode. The values are displayed as torque targets in lb-ft.

This toolbar allows you to quickly add, subtract, adjust, and interpolate the values in the table.
